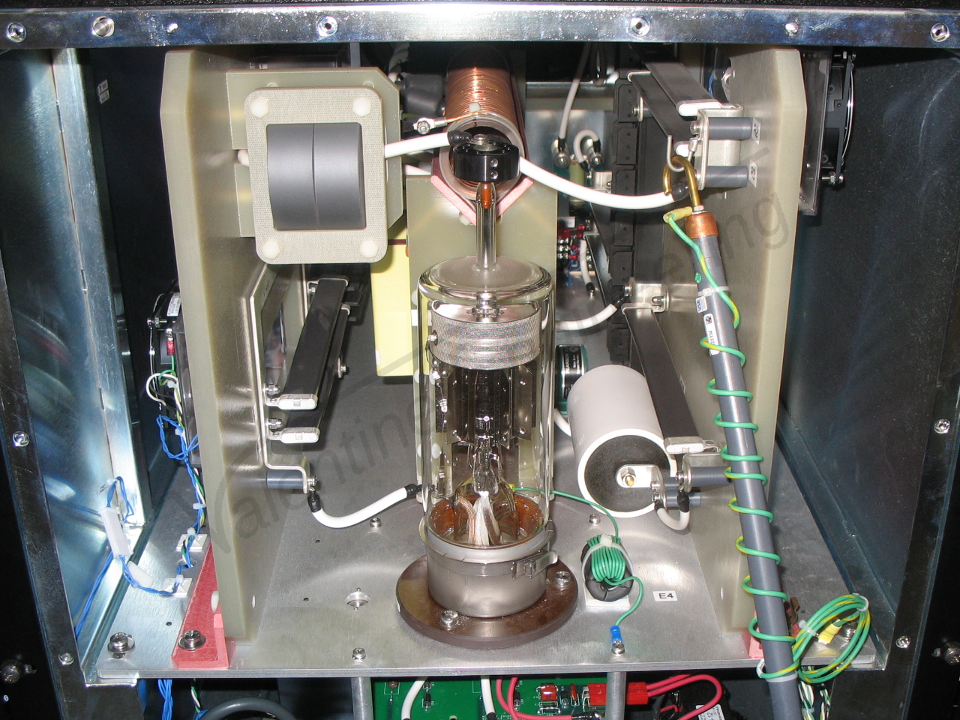

X-band Magnetron Modulator

Chassis rack mounted PFN modulator (type E) located 30 m away from the linac.

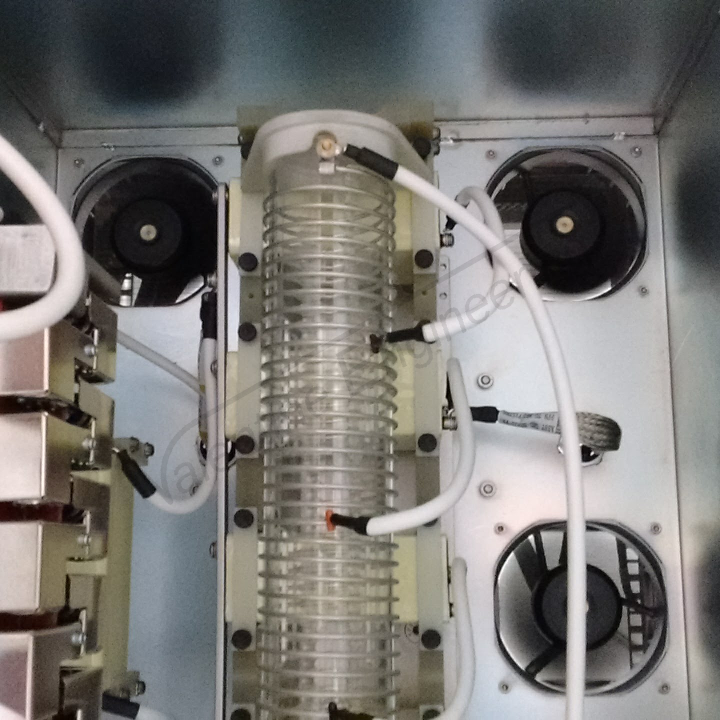

S-band Magnetron Modulator

Rack mounted PFN modulator (type E) located 30 m away from the linac.

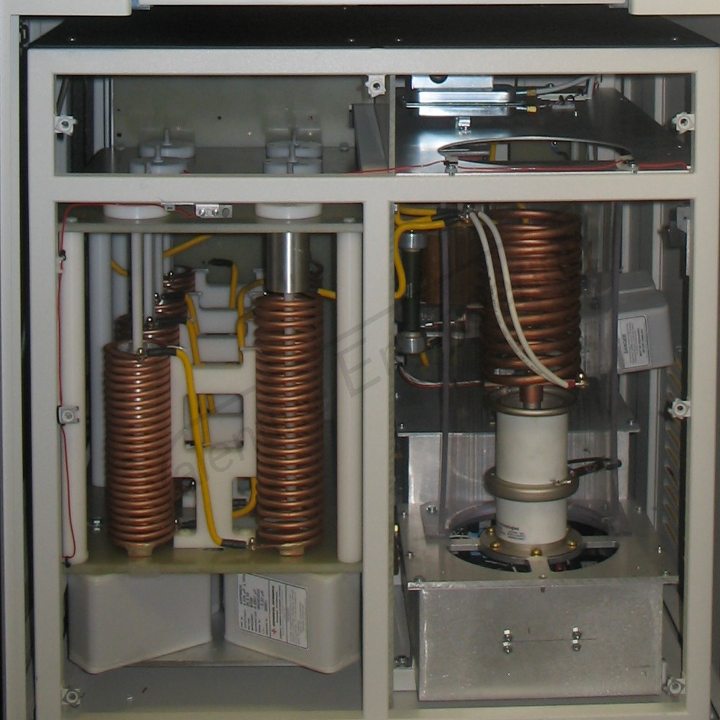

X-band Klystron Modulator

Chassis rack mounted PFN modulator (slug tuned) located 30 m away from the linac.

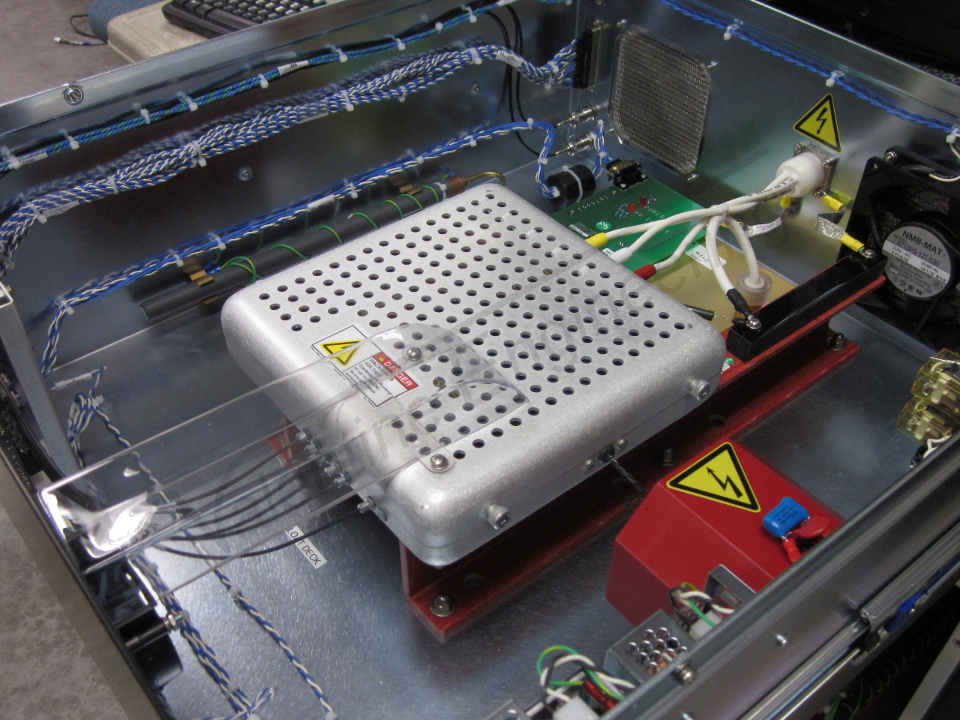

Triode Electron Gun Driver

Chassis rack mounted electron gun driver located 30 m away from the linac.

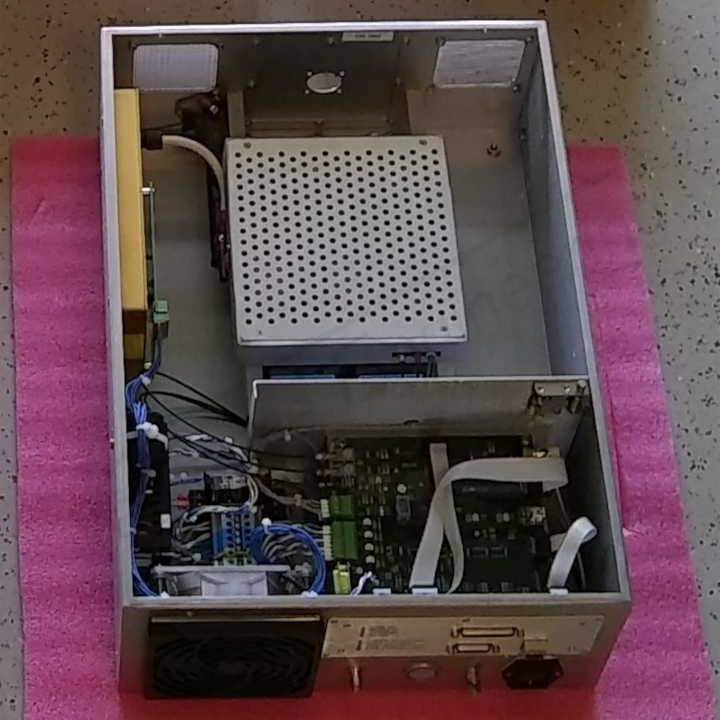

Triode Electron
Gun Driver

Enclosure mounted electron gun driver withe ethernet control interface.

VE-1001

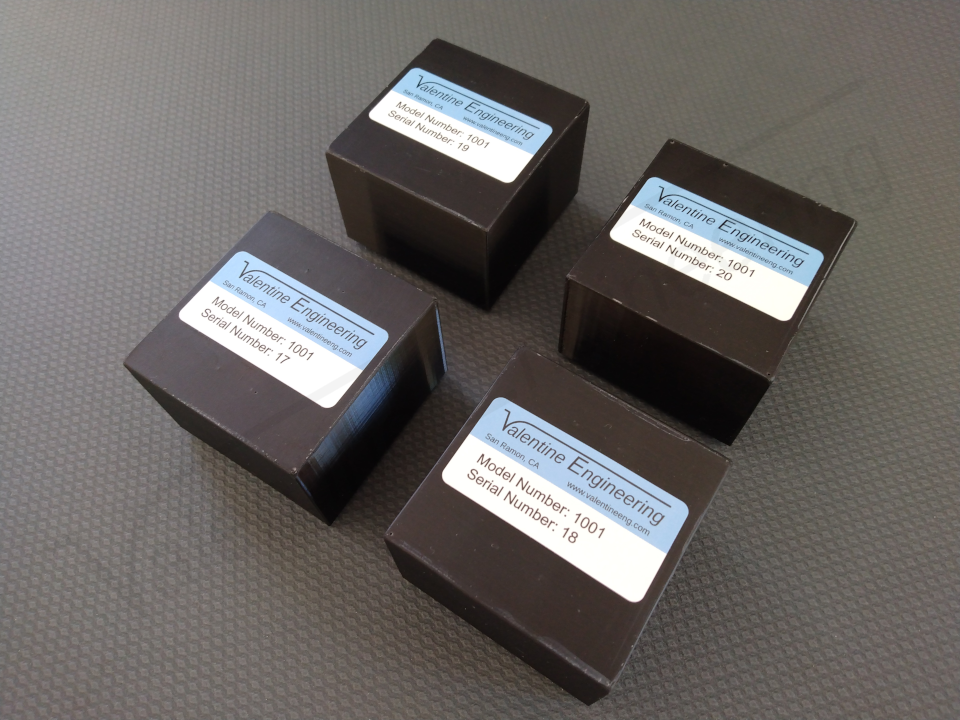

Thyratron Trigger Transformer

Thyratron trigger pulse transformer, dual secondary, PCB mount.

VE-1002

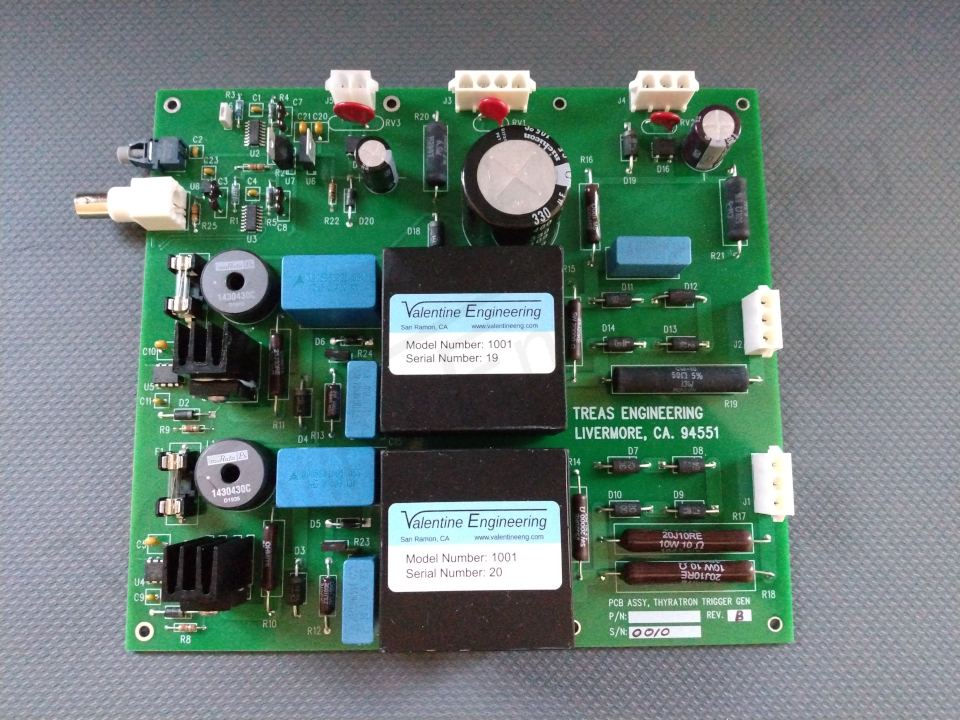

Thyratron Trigger PCB

Dual thyratron trigger PCB for medium and high power thyratrons. Optically isolated or BNC input trigger with dual output grid 1 and grid 2 triggers.

VE-1003

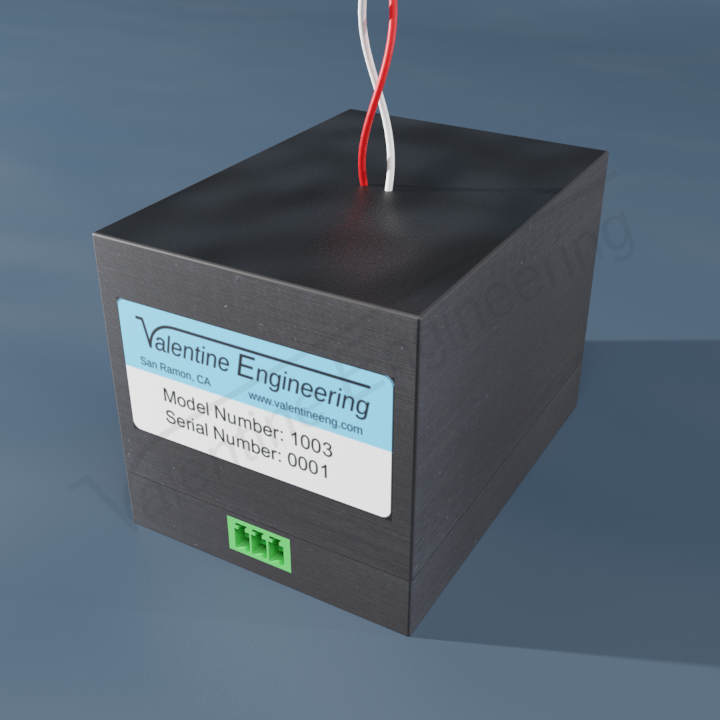

HV Isolated DC-DC Converter

20 kV HV isolated DC-DC power supply. 24 VDC input, 15 VDC at 20W (30W max) output.

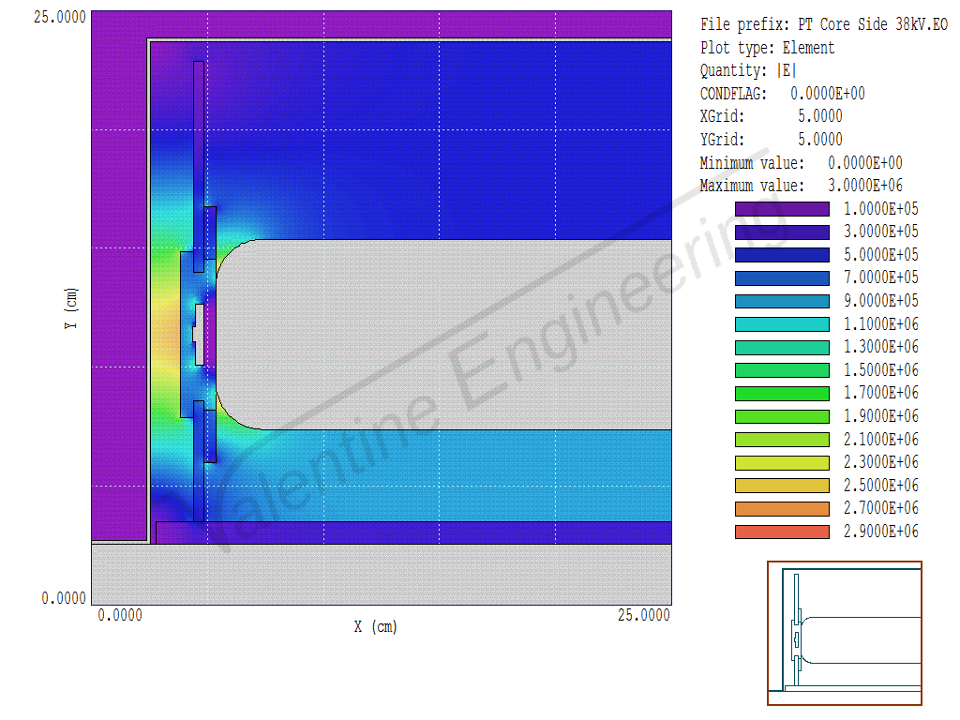

Electric Field Simulation

2D electric field simulation illustrating a HV breakdown issue with a pulse transformer to a grounded enclosure.

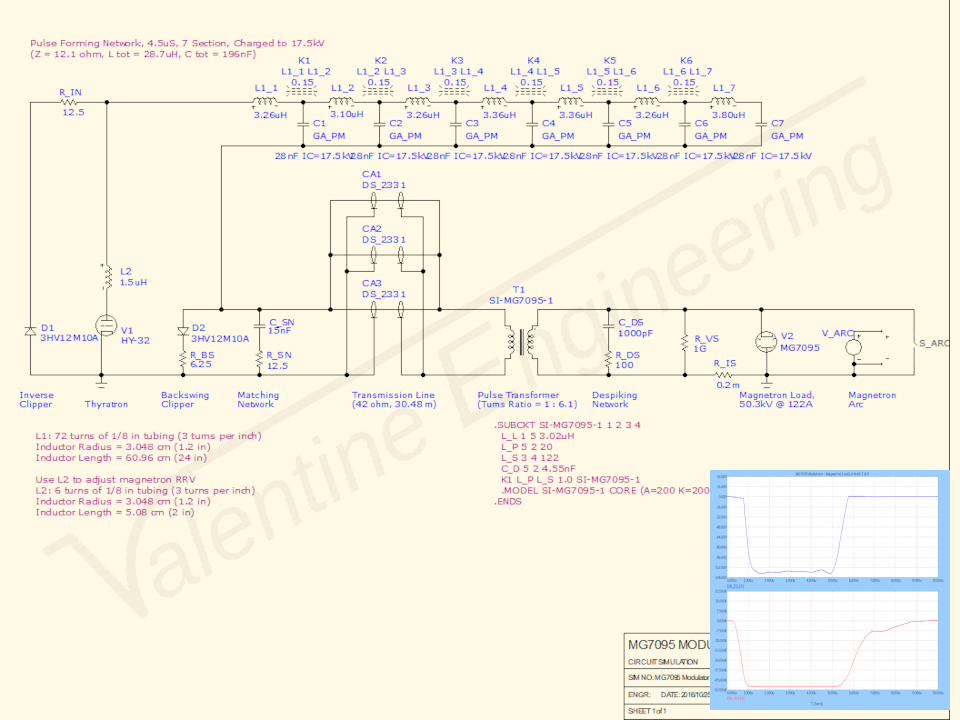

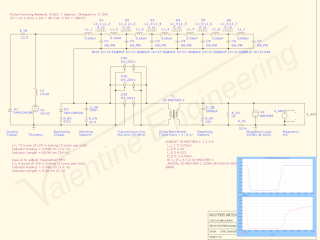

Circuit Simulation

Micro-Cap circuit simulation of a line type modulator driving a pulse transformer and magnetron 30 m away.

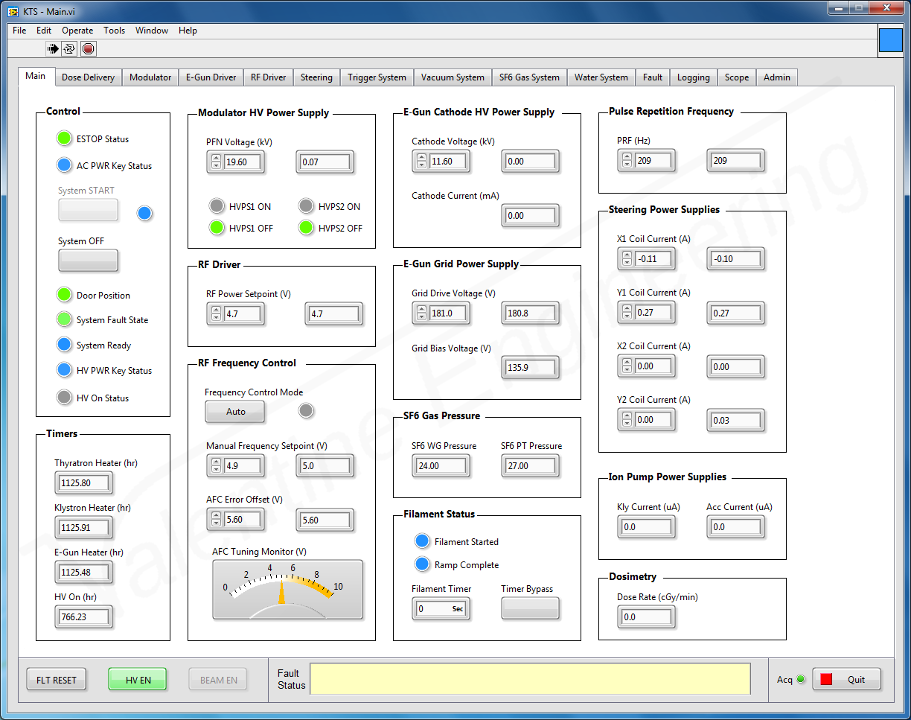

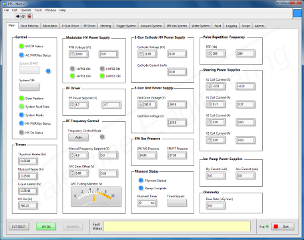

LabVIEW Test Setup

Klystron test system with LabVIEW graphical user interface.

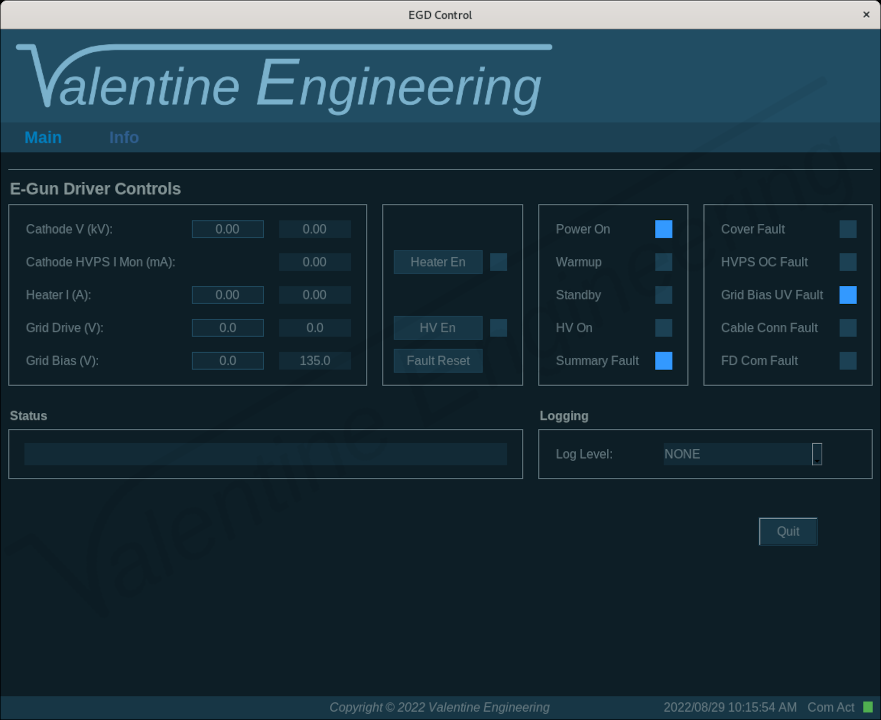

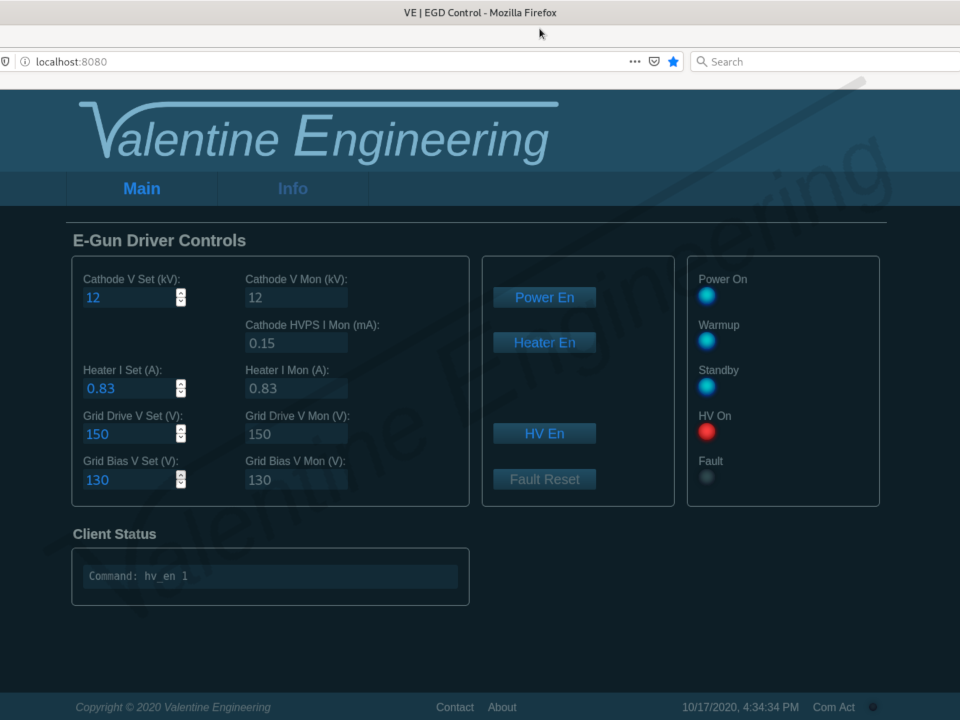

E-Gun Driver GUI

E-Gun driver graphical user interface written in HTML running in web broswer.

E-Gun Driver GUI (Python)

E-Gun driver graphical user interface written in Python using the tkinter package.

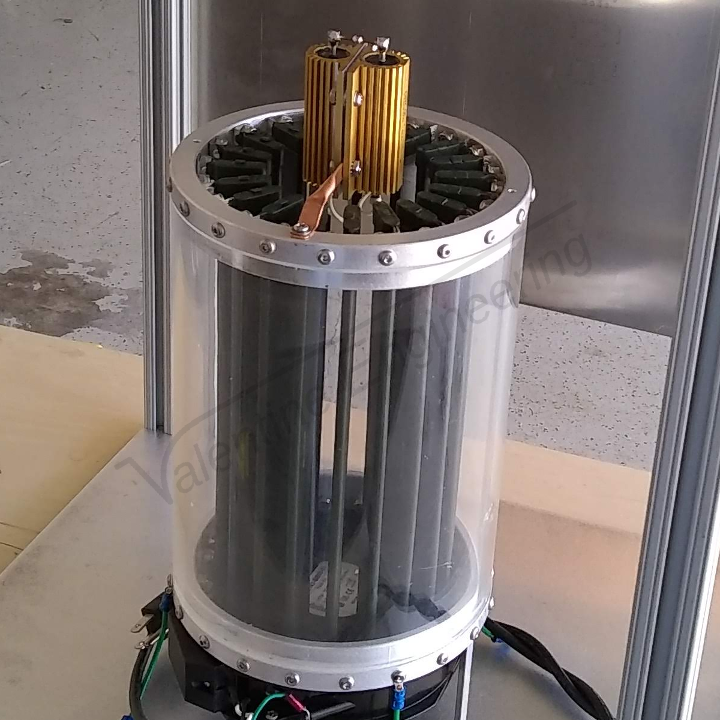

HV Resistive Load

Ceramic non-inductive resistive load (400 Ω, 35 kV) for magnetron modulator testing.

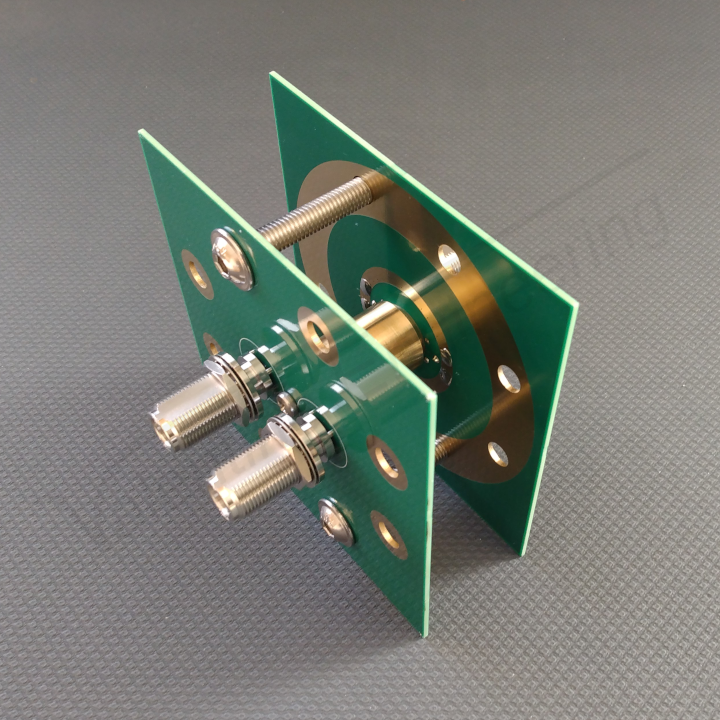

BCM Test Setup

Coaxial conflat flange fixture for beam current monitor testing.
